Scandia-Hus Standard Designs:

The Chiddingstone - Split-Level Living

Sitting Room 4.8m x 5.9m Master Bedroom 3.6m x 4.7m
Study 3.5m x 2.0m Bedroom 2 3.5m x 3.5m
Dining Room 7.2m x 4.0m Bedroom 3 4.0m x 5.5m
Kitchen 4.3m x 3.5m Bedroom 4 3.5m x 4.4m
Optional Sun Room 3.7m x 3.4m
Overall Size: 287m2 / 3,089ft2

The total cost of the project (including building set, shell erection and construction) will depend on site conditions as well as on your final specification and your chosen method of construction, i.e. self-build, project management, use of a nominated main contractor or a combination of these methods. For further details please see our Fact Sheets.

To assist you in assessing the overall cost of the project, a ‘rule of thumb’ guide, based on the various procurement routes mentioned above, would be:

  Cost of Building Set Cost of Shell Erection and Window Installation
The Chiddingstone £181,748 £21,977
Optional Sun Room £17,024 £2,503
Full Self-Build £120 - £140 per sq.ft
Project Management £140 - £170 per sq.ft
Main Contractor £170 - £210 per sq.ft

These estimated square foot prices are inclusive of building set, shell erection, window fit and construction costs. The price includes delivery to mainland site. The building set includes the timber frame with a fully boarded roof, insulation, 15mm plasterboard, plasterboard screws, Swedish triple glazed windows and external doors. Also included are Swedish internal doors, skirting boards, coving, architrave, insulated loft hatch and ladder, open or closed treat staircase and mechanical ventilation system. The estimate assumes standard foundation requirements and a good, above average specification of finishing materials. It does not include any external works, connecting to utilities or associated professional fees.

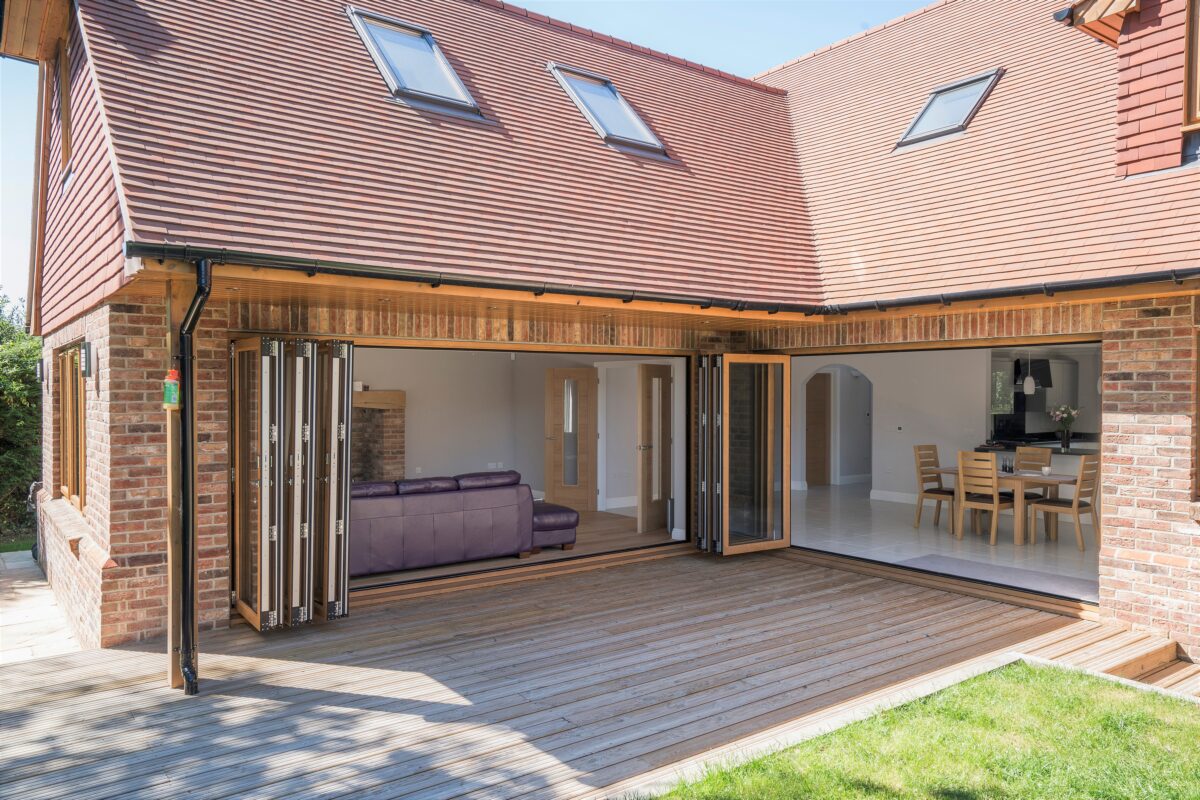

A popular chalet bungalow style design, there’s a feeling of space that greets you as you enter this home. A view to the outside area at the rear can be seen through the dining hall, via glazed double doors, down through the lower level sitting room and out from the sunroom. The back of this property is filled with light due to the multiple sliding doors and is a perfect area for enjoying the garden.

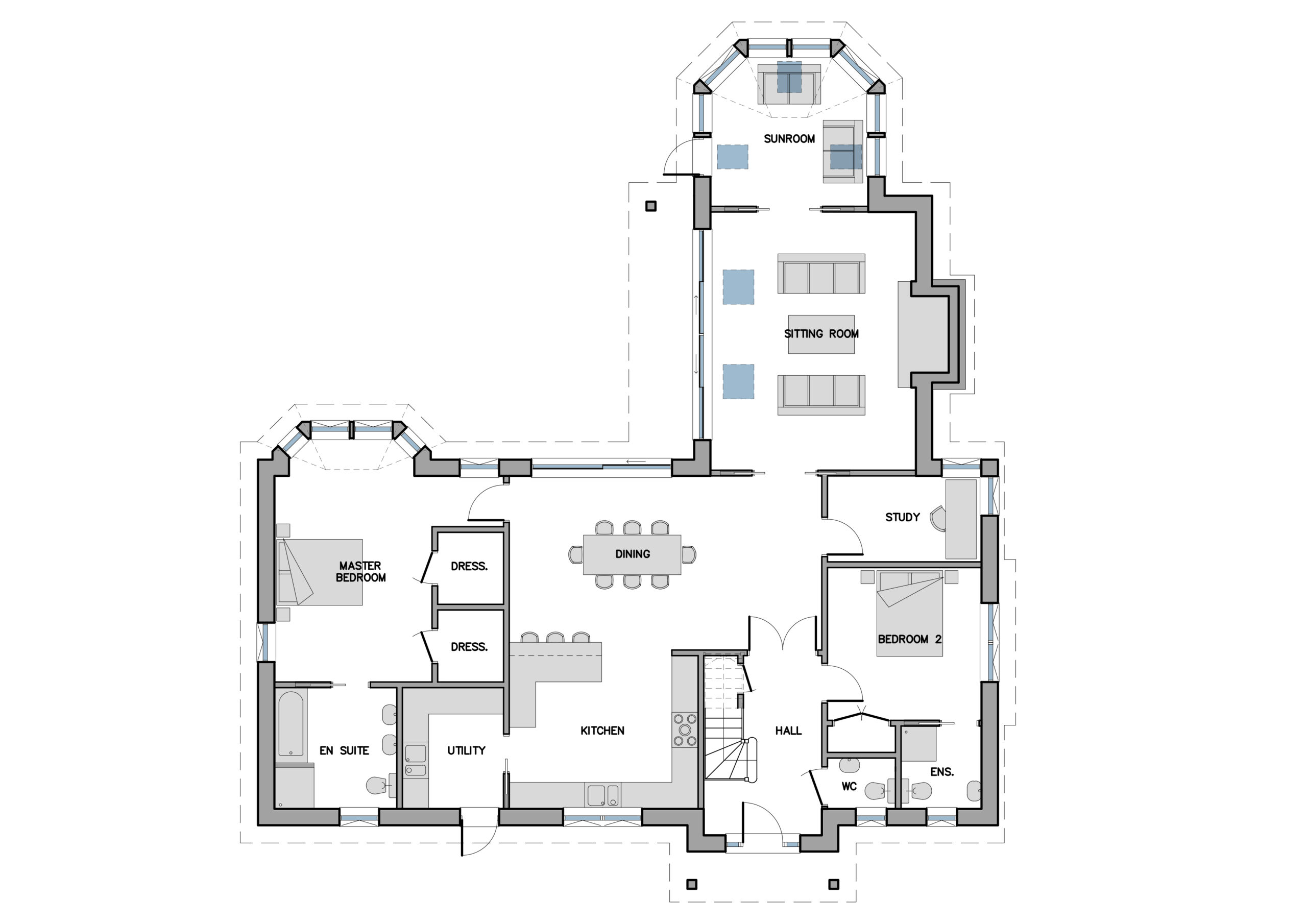

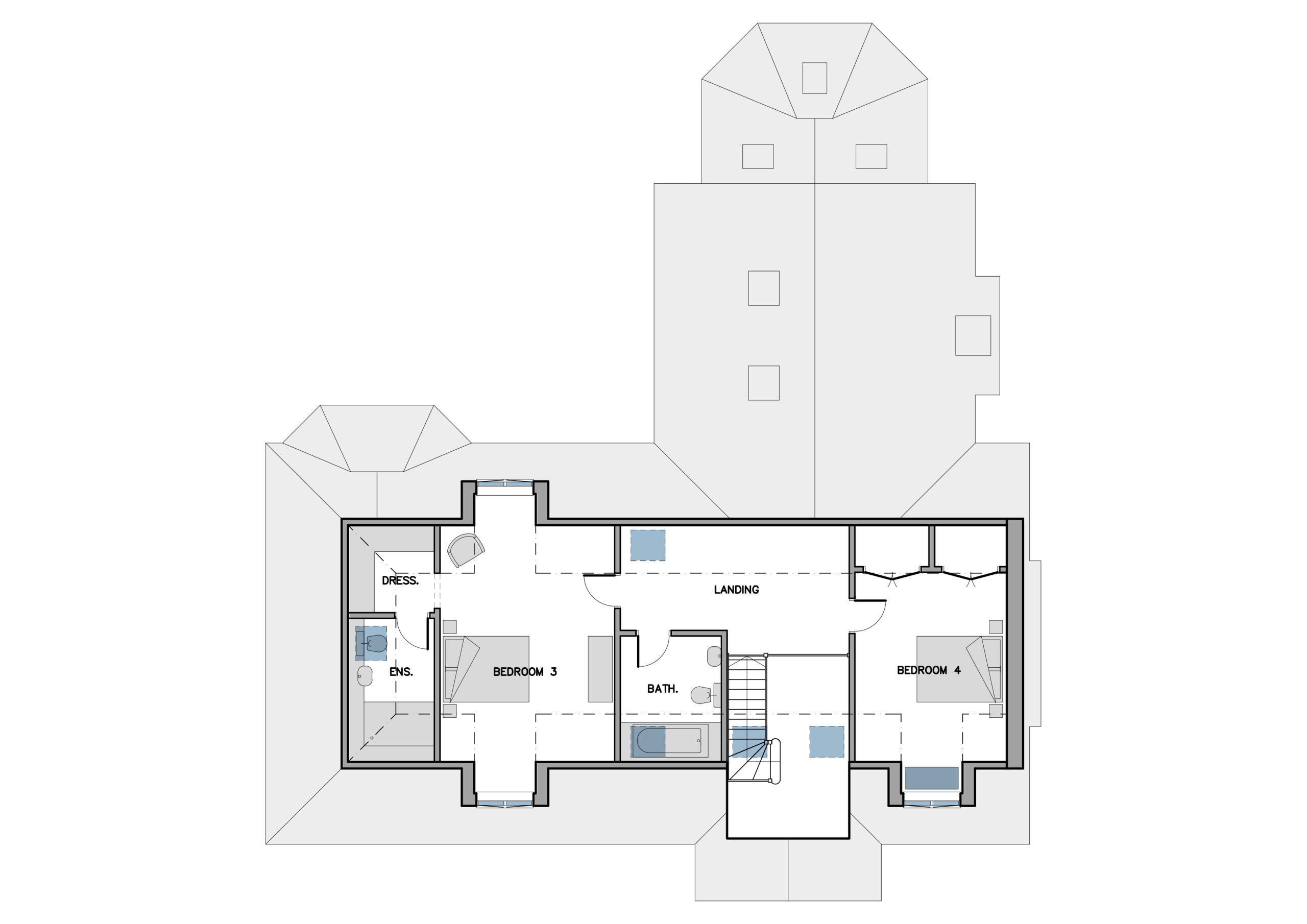

The Chiddingstone can be equipped initially as a single-storey home, leaving the option to move into the first floor at a later stage, and the optional sun room shown on the plans can be added to any design. The ground floor layout incorporates three bedrooms and a study, as well as a kitchen with dining hall and a large sitting room. The first floor includes two double bedrooms, two bathrooms as well as a landing or sitting area. It also offers the option of further expansion into the loft space above the sitting room.

Scandia-Hus offers a complete bespoke design service. All of our house designs are fully flexible from the external finishes, right through to modifying internal layouts. We believe that every home is unique and we will tailor a design to suit your own personal lifestyle needs. Many customers will start with one of our designs featured on our website and will work with our in house architectural designers to create the home of their dreams. Others will create something totally unique, a rare opportunity to make a permanent and personal mark on the landscape.

If you would like further information on the Chiddingstone chalet design and how we can tailor this build to suit your own plot, please contact our sales office on 01342 838060 or email sales@scandia-hus.co.uk and one of our team will be in contact with you shortly. Alternatively make an appointment to come and see for yourselves our design and build quality by visiting our Show Centre at our offices in Felcourt, West Sussex.
